POLYPAC® Veepac CH/G1

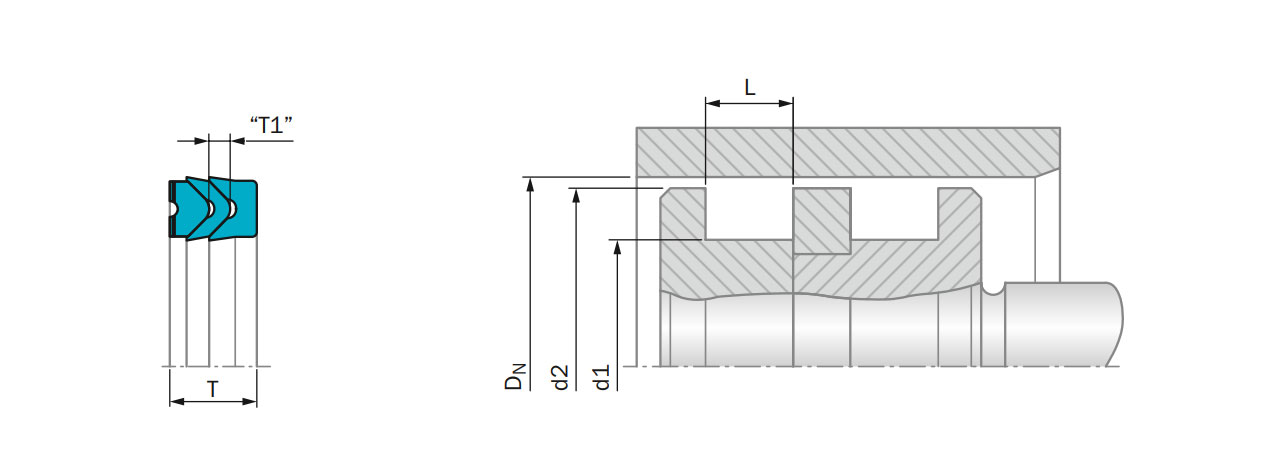

VEEPAC is an assembly of fabric-reinforced, highly wear resistant chevron sealing rings with a support ring and a pressure energizing ring. VEEPAC seals are designed with preloaded radial lips to provide good sealing results. They are very robust, not sensitive to sealing surface finish and dimensionally adjustable. They are especially suited to applications where there is a risk of damage and contamination.
Speed (max):
0,5 m/s
Pressure (max):
40 MPa
Temperature:
-30 °C to 200 °C
Size Range:
40 mm to 250 mm
Material Information for the product(s) on this page
N0O0C
Colour:
Black
Basic Material:
NBR/fiber/POM
